5" 1280 x 720 IPS Touchscreen LCD
3G/HD/SD-SDI Input, Embedded Audio
800 cd/m² 10-Bit IPS LCD Panel
160° Viewing Angle, 3.5mm Headphone Jack
Uses OS4 for Waveform & Other Tools
5-Pin LEMO Camera Control Output
L-Series Battery Mount, 2-Pin LEMO Power
SD Card for Image Capture/Overlay & LUTs
Durable Aluminum Chassis
The SmallHD FOCUS Pro 3G-SDI Monitor was designed specifically to support the RED KOMODO 6K cinema camera, and it provides a compact, professional 3G-SDI monitoring and camera control option. This bright, lightweight 5" capacitive touchscreen display features a sharp 1280 x 720 IPS LCD with 800 cd/m² brightness that is viewable even in full daylight. The panel features a single 3G/HD/SD-SDI input with embedded audio, and it has a 5-pin control output that provides control for the KOMODO using the separately purchased update for the onboard OS4 software and a separately available cable.

Powered by a single Sony L-series type battery, this versatile monitor can also be powered by a 2-pin LEMO input. Coupling the touchscreen display with SmallHD's intuitive OS4, you can turn on various monitoring tools like waveform, false color, and vectorscope, as well as focusing aids like tone map, highlight roll-off, and peaking with a tap on the screen. OS4 also allows you to load and save profiles and load custom LUTs using the SD card slot.

Additional features include a 3.5mm stereo headphone jack, a durable aluminum chassis, and a low power draw. The monitor features three 1/4"-20 mounting threads and an ultra-clear screen protector comes in the package.
SmallHD OS 4
With the power of the new OS4 software, utilize all of the dependable SmallHD features such as customizable frame guides, Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, and waveform, and achieve tack-sharp critical focus with SmallHD Focus Assist.

RED KOMODO Camera Control
The FOCUS Pro unleashes the full potential of KOMODO with intuitive touchscreen menu control. Connected via the locking 5-pin USB port, RCP functionality enables unfettered access to camera operations and project settings such as recording formats, resolution, frame rates, shutter speed, aperture adjustment, autofocus, output tone map, highlight roll-off, 3D LUTs, Run/Stop, and more.

Software Features
Pixel zoom: 2x and 4x with smooth pan via pinch-zoom gesture
Frame guides: Preset aspect ratios and customizable
DSLR scale: Canon 5D Mark II and 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image rotate: Automatic or manual control
Image flip: Automatic or manual control
Focus assist: User-adjustable color style and intensity
Peaking: User-adjustable intensity
False color spectrum: ARRI-style and user customizable
Zebra: Dual, user configurable
Waveform: Luma and RGB style, fully user customizable with region-of-interest highlighting
Vectorscope: Yes
RGB parade: User customizable
Histogram: Luma and RGB style
Image capture: Dedicated button and image gallery
Custom LUTS: Loadable as looks on pages or as system-wide color calibration via the settings menu
LUT downstream: Applied on output preview page
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Audio meters: Up to eight channels

Display Features
SD card slot for loading custom LUTs
Wide color gamut display
2x and 4x pixel zoom
1.33x, 1.5x, 1.66x, and 2.0x anamorphic de-squeeze
Automatic/manual image flip and rotation
Waveform, zebra, and vectorscope
Preset and custom frame guides

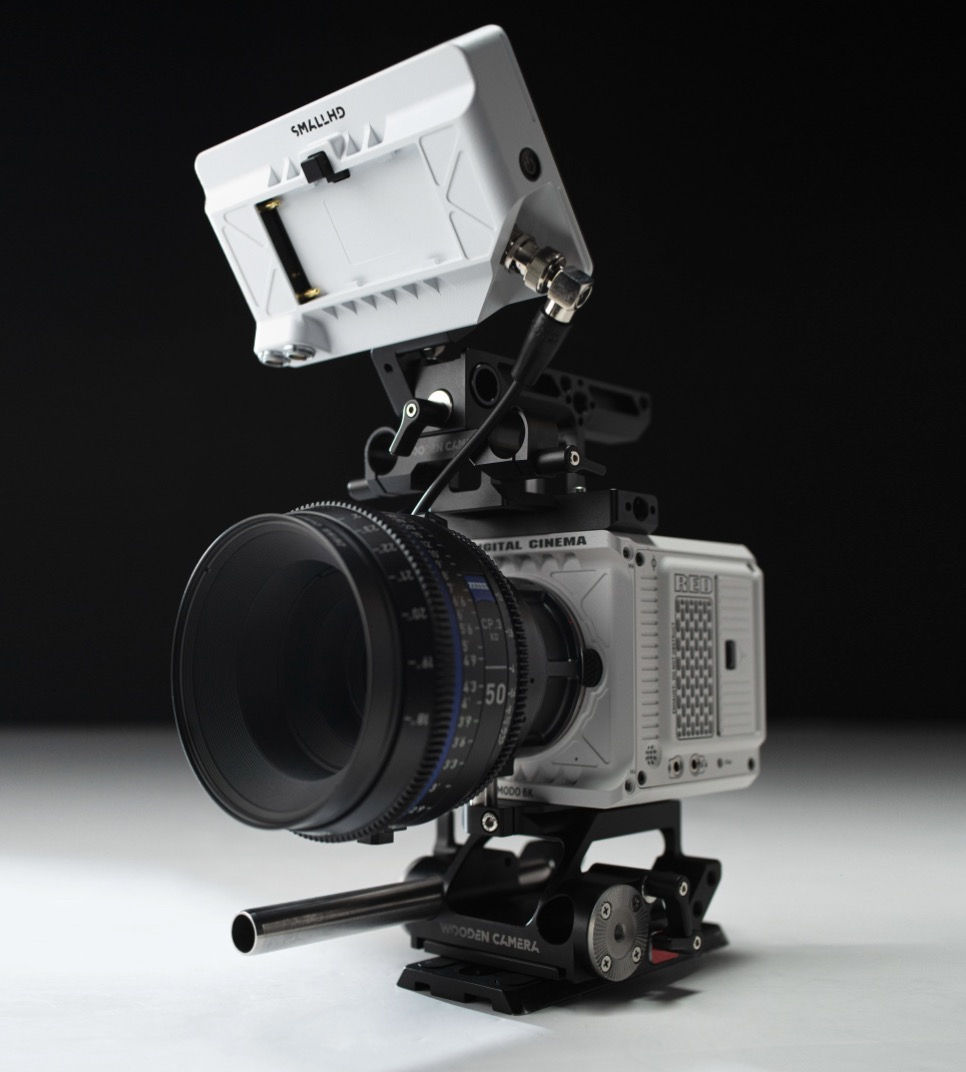

SmallHD focus PRO (Komodo control white ) 5inch SDI monitor
